While some would call it easy compared to some of the more complex services on Amazon's cloud platform, AWS Glue still requires certain prerequisite knowledge. Users need to be familiar with a few key data engineering concepts to understand the benefits of using Glue. Some examples of these concepts are what data engineering is, the difference between a data warehouse and a data lake, as well as ETL and ELT, and a few other concepts. In this article, we will first cover these topics. Then, we will shift our focus to AWS Glue and AWS Glue DataBrew and what they offer. After explaining the theory behind Glue and DataBrew, we will dive deep into an example, in which we will demonstrate how to use Glue DataBrew to create a data workflow.
What is Data Engineering
Every data scientist understands the importance of data engineering. However, most people tend to find it less interesting and try to rush through it or ignore it. This is a consequence of the popularity of AI. Most people getting into the fields of machine learning and deep learning focus on creating models that give great predictions using collected data. Those same people may not realize the implications of not having quality data at their disposal. Even the most revolutionary model won't get good results if the data it trains on is subpar.
Without an investment in data engineering, an organization will only ever use a fraction of all the data available. As technology advanced, an ever-increasing number of data sources was made available. These large quantities of data are knows as big data. Data engineering focuses on creating efficient ways of collecting these huge quantities of data and analyzing it.
To be more specific, data engineers don't focus as much on experimental design but instead focus on creating mechanisms that regulate data flow and allow for quick and easy data retrieval. The job of a data engineer is a very demanding one because it requires detailed knowledge and understanding of many topics, including:
- Data models
- Information flow
- Query execution and optimization
- Design of relational and non-relational databases
With the introduction and rise in popularity of cloud platforms, being a data engineer today requires knowing more tools than ever before, such as Spark, Hive, and Hadoop. Though this is the case nowadays, there is a chance that almost all companies will use cloud platforms in the near future. Even though this won't decrease the amount of knowledge a data engineer needs to have, it might lead to a situation where data engineers can focus on a cloud platform of their choice and become specialized in it, in effect reducing the number of different tools they need to know.
What is a Data Warehouse
Often called decision support databases, data warehouses are separate from an organization's operational database. They are the core of an organization’s business intelligence system. Users access data that is stored in a data warehouse using various business intelligence tools, SQL clients, and spreadsheets.
Data warehouses are created so that users can easily query and analyze data collected from many different sources. This also makes data mining efficient and possible. The four main components of a data warehouse are:
- Load manager - the front component, in charge of data extraction and loading
- Warehouse manager - in charge of performing data analysis, creating indexes and views, data merging, data aggregation, etc.
- Query manager - the back component, manages user queries
- End-user access tools - query tools, tools that create data reports, application development tools, data mining tools, EIS tools, and OLAP tools
- Highly scalable and good for big data
- Increase speed and efficiency of data analytics
- Give a combined view of data, allowing users to create good reports
- Perfect for analyzing different time periods to predict future trends
- Not good for unstructured data
- Too complex for the average user
- Can get outdated quickly
- Can be time-consuming to implement
What is a Data Lake
Up until now, whenever we talked about ETL and data engineering, we talked about data warehouses. However, with cloud platforms, a new way of storing big data was introduced: data lakes.
Data lakes are repositories that can hold huge quantities of raw data. That data is stored in its raw format until it is needed. Every element in the data lake is given a unique identifier, accompanied by corresponding metadata tags. The target audience for data lakes is data scientists. Data lakes are best suited for use in data science research and testing. Contrary to data warehouses, they encourage a schema-on-read process model. Data stored in native format is retrieved dynamically when there is a need for it.
Data lakes are not designed with ETL processes in mind. Contrary to data warehouses, because they can contain structured, semi-structured, and even unstructured data, the process we use when working with data lakes is an alternative to the standard ETL process. Data lakes use the ELT process.
- Perfectly suited to cloud computing
- They retain all data unlike data warehouses, where only some data enters the data warehouse
- They support data sources that data warehouses don't, such as sensor data, web server logs, etc., and support users that need to heavily change and manipulate data
- They adapt to change very quickly
- Data from data lakes can be accessed much quicker
- They assume a certain amount of user knowledge
- Sometimes they contain subpar data
- Lack of insight from previous findings
- Data integrity loss
What is ETL
ETL is an abbreviation which we use to describe a data integration process that consists of the following three steps:
The main idea behind ETL processes is to create some type of construct that allows users to view data from multiple different sources. Typically, we would first create a data warehouse. Then, we can \analyze the data in the data warehouse and create different reports. This has proven to be exceptionally practical for establishing good communication between coworkers who may have different skill levels in programming, data engineering, and data science.
The first step of an ETL process is to extract data. The goal of this step is to move data from multiple different data sources to a staging area. The data can be extracted from not only homogeneous sources but also heterogeneous sources (which is far more common). Frequently used data source formats are:
- relational databases
- flat files
This is potentially the most important step of ETL since it prepares data for the next two steps. Generally, we prefer our data to be in a single format before we start the processes of transformation and loading. Another important part of data loading is the process of data validation.
The validity of the extracted data must be confirmed so that no problematic data enters the next stage of the ETL process. Data engineers should also make sure that the invalid data gets reported so that its source gets investigated and any problems that occurred during data extraction get solved.
During this stage, we transform our data and prepare it for the next step: loading. Transformations are functions that we use to define data transformation processes. They are necessary because our data is often in need of cleaning, even if it is all in one format. We usually prefer to modify our data in some way before we load it into our end target.
That process, also called cleansing, includes procedures such as:
- Encoding and character set conversion
- Conversion of units of measurement
- Validating data thresholds
- Transposing rows or columns
- Merging data
- Data flow validation
There are a lot more procedures than the ones we mentioned above. The amount of transformations needed depends on the data that is extracted and enters the staging area. Cleaner data will require fewer transformations. Since this step is directly influenced by the first step in the process, changes in the first step will likely lead to changes in the second step, such as removing some transformations or adding new ones.
This is the last step of the ETL process. It covers moving transformed data from the staging area to our data warehouse. Although this process might seem very simple, the complexity of it lies in the sheer amount of data that needs to be loaded as quickly as possible. Loading huge amounts of data quickly requires a highly optimized process, with some safety mechanisms put in place to activate in case of a load failure. There are different types of loading:
- Initial Load - populating all warehouse tables
- Incremental Load - applying periodical changes
- Full Refresh - replacing old content with fresh content
What is ELT
As an alternative to the ETL data integration process, it functions by replacing the order of the second and third steps of the ETL process. The steps of the ELT process are as follows:
Using the built-in processing capability of some data storage infrastructure, processes become much more efficient. Because the data doesn't go through an intermediary step where it gets transformed, the time that passes from extracting data to loading that data into target storage such as a data warehouse is a lot shorter.
- Better suited towards cloud computing and data lakes
- Data loading to the target system is significantly quicker
- Transformations performed per request which reduces the wait times for data transformation
- Tools are harder to use
- ELT maintenance is virtually non-existent when compared to ETL systems
What is AWS Glue
Glue was originally released in August 2017. Since then, it has seen many updates, the last one being in December 2020. The purpose of Glue is to allow users to easily discover, prepare and combine data.
Creating a workflow that efficiently achieves the above-mentioned processes can take quite some time. This is where Glue steps in. It is a fully managed ETL service specifically designed to handle large amounts of data. Its job is to extract data from several other AWS services and incorporate that data into data lakes and data warehouses. Glue is very flexible and easy to use because it provides both code-based and visual interfaces. A very popular and recent addition is DataBrew. Using Glue, DataBrew data can be cleaned, normalized, and even enriched without even writing code, while Glue Elastic Views makes combining and replicating data across different data stores using SQL very straightforward.
Glue jobs can be triggered by predetermined events or can be set to activate following some schedule. Triggering a job automatically starts the ETL process. Glue will extract data, transform it using automatically generated code and load it into a data lake such as the AWS S3 service or a data warehouse such as the Amazon Redshift service. Of course, Glue supports much more. It also supports MySQL, Oracle, Microsoft SQL Server, and PostgreSQL databases that run on EC2 instances.
All data gets profiled in the Glue Data Catalog. Customizable crawlers scan raw data stores and extract attributes from them. Data Catalog is a metadata repository that contains metadata for all data assets. It can also replace Apache Hive Metastore for Amazon Elastic MapReduce.
It should be noted that it is also possible to create and use developer endpoints. Using those endpoints, Glue can easily be debugged and custom libraries and code can be implemented, such as readers, writers.
- Easy maintenance and deployment
- Easy to debug
- Supports many different data sources
- Not the best for real-time ETL
- Limited compatibility with non-AWS services
- Limited support for queries
What is AWS Glue DataBrew
DataBrew is a relatively new addition to the AWS family of services, introduced in November of 2020. It is a visual data preparation tool that requires no coding whatsoever, which means it is very accessible even for those who may not be adept at programming. Because the tool requires no coding at all (and because of how DataBrew recipes work, which is something we will explain later on in this article), the tool makes collaboration between teams inside a company very straightforward. Inside each company, multiple teams work with data, with each team using that data differently. Data scientists, data engineers, business analysts, etc. all analyze data regularly, but the differences between those teams can sometimes lead to problems. It can be hard to communicate ideas and discuss problems between teams that are at a different level of technical knowledge. To alleviate that problem and streamline communication between teams, AWS introduced DataBrew. They claim that it helps reduce the time needed to prepare data for analytics and machine learning by up to 80%. Leveraging the power of over 250 built-in transformations automates work to save a lot of time.
DataBrew integrates extremely well with other AWS services. When creating new projects, users can import their data from numerous different data sources such as S3 buckets, Amazon RDS tables, Amazon Redshift, etc. Also, users can profile their data, allowing them to gain an insight into it before they even start applying transformations to it. Information such as data type, level of cardinality, top unique values, whether there is missing data or not, and even how the distribution of data looks can sometimes be crucial to determining how to deal with some data. That being said, the fact that the current capabilities of the profiling tool inside of the service might look somewhat limited from the perspective of an advanced user is a design choice. DataBrew is not primarily a data analysis tool, so it isn't surprising that its data profiling capabilities are a bit on the light side. For a tool like DataBrew, it is far more important to have a function that tracks data lineage. In DataBrew, it comes in the form of a visual interface, which further emphasizes the idea that DataBrew should be as easy to use as possible.
However, the true power of this new AWS service lies in its ability to apply over 250 different in-built transformations without any coding. Transforming data can sometimes be code-heavy, so having the ability to perform them by just clicking a few buttons in a UI cannot be overstated. Transforming data in DataBrew is very straightforward and is contained in so-called DataBrew recipes.
Recipes define the flow of transformations in DataBrew. Every transformation project in DataBrew will consist of several steps. Recipes contain those steps strung together into a coherent workflow that is reusable and shareable. As mentioned before, there are a plethora of different transformations that can be applied to data, some of which are:
- Filtering and modifying columns
- Formatting data
- Dealing with missing values
- Dealing with duplicate values
- Mathematical functions
- Creating pivot tables
- Aggregating data
- Encoding data
- Scaling data
These are just some of the many functions of DataBrew. With such a vast number of different transformations at the user’s disposal, the only thing they need to do when transforming their data is to choose the right one. For some, it might seem like a problematic task given the sheer number of options. However, the creators of DataBrew also decided to include a recommendations tab. In this tab, users can see what transformations DataBrew recommends for a particular dataset. This further emphasizes the main idea of DataBrew: simplicity.
Glue DataBrew vs SageMaker DataWrangler
With both services coming out in a relatively close time frame, and both serving a similar purpose, a lot of users (mostly data scientists) were left with a dilemma: should they use Glue DataBrew or SageMaker DataWrangler for dealing with data?
This question doesn't have a right answer, as it depends on the needs of the user. Advanced users, especially data scientists, will surely mention that in DataWrangler, you can write custom transformations on the spot and use them to transform your data. It also has the capability of quickly analyzing data on a high-level, including building quick machine learning models to track information such as feature importance.
On the other hand, the simplicity of DataBrew cannot be ignored. With as many built-in transformations as there are available in it, a lot of users might have all their needs covered. Also, working in DataBrew requires a lot less knowledge and can be used by people with minimal technical knowledge.
All in all, the target groups of these two services are different. DataWrangler is aimed at data scientists, focusing on giving them the freedom they need when preparing data for machine learning models. Conversely, DataBrew makes sure that things stay as simple as possible. It offers less freedom but in return covers almost everything an average user could ever want. Very advanced users might find its capabilities somewhat limited, but they are not the target audience for the service.
AWS Glue DataBrew Example
Knowing the theory behind a service is important, but one should not neglect the importance of hands-on experience. To finish this article, we are going to demonstrate how DataBrew works by loading in a simple dataset, profiling that dataset, and creating a DataBrew recipe. The dataset we are going to use is the Wine Reviews dataset found on Kaggle, specifically the "winemag-data-130k-v2.csv" file.
Creating a Source of Data
This example includes a step that isn't directly connected to DataBrew, and that is creating an S3 bucket. To create an S3 bucket, go to the S3 Management Console in AWS and click on "Create bucket".

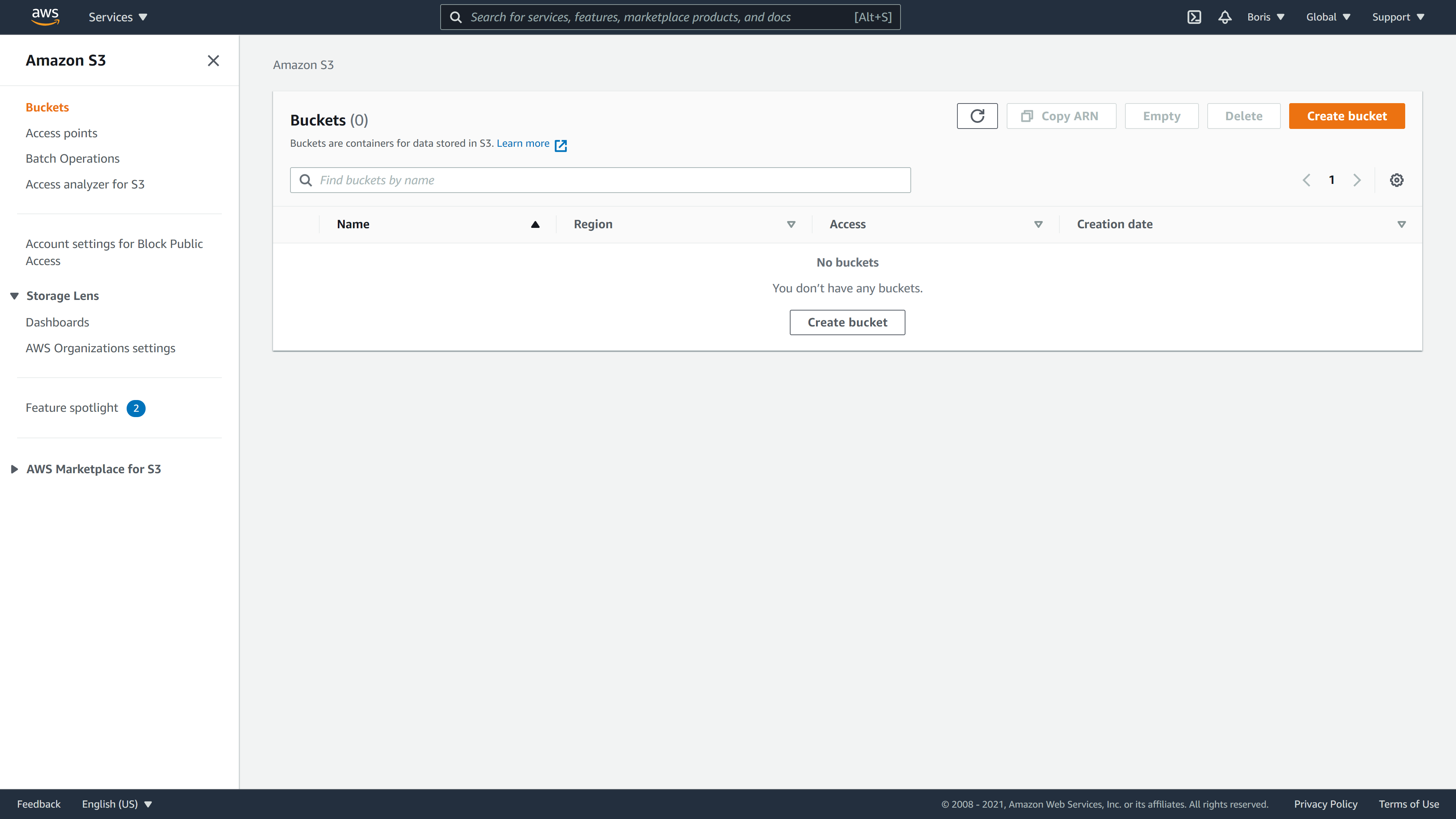

Create a new bucket and name it "edlitera-databrew-bucket". Leave all other options on default.
Once we create the bucket, it will pop-up on our S3 screen in AWS.

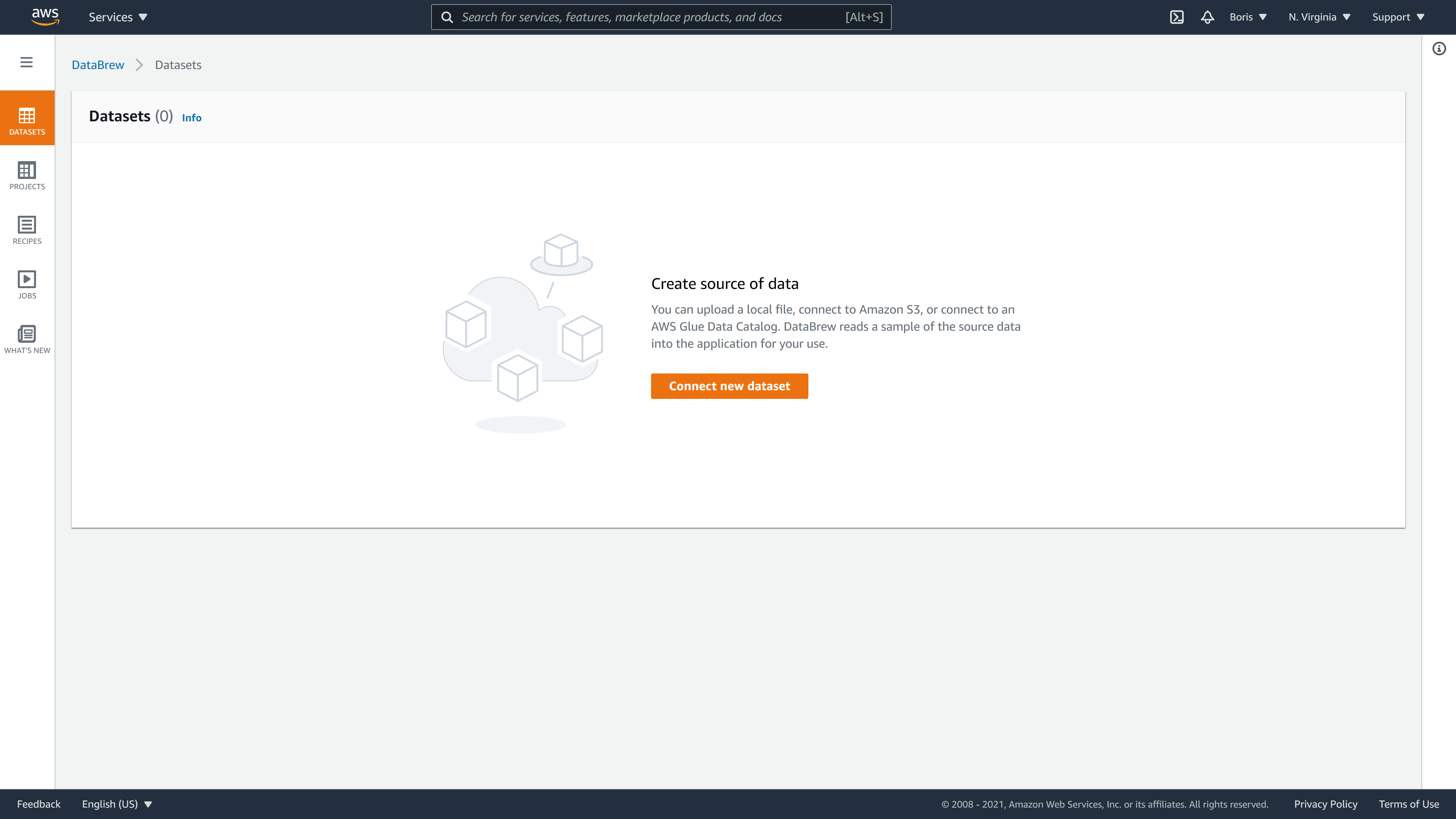

After creating a bucket, we are ready to start working with DataBrew. On the DataBrew page, click on the datasets tab, and afterward on “Connect new dataset”.

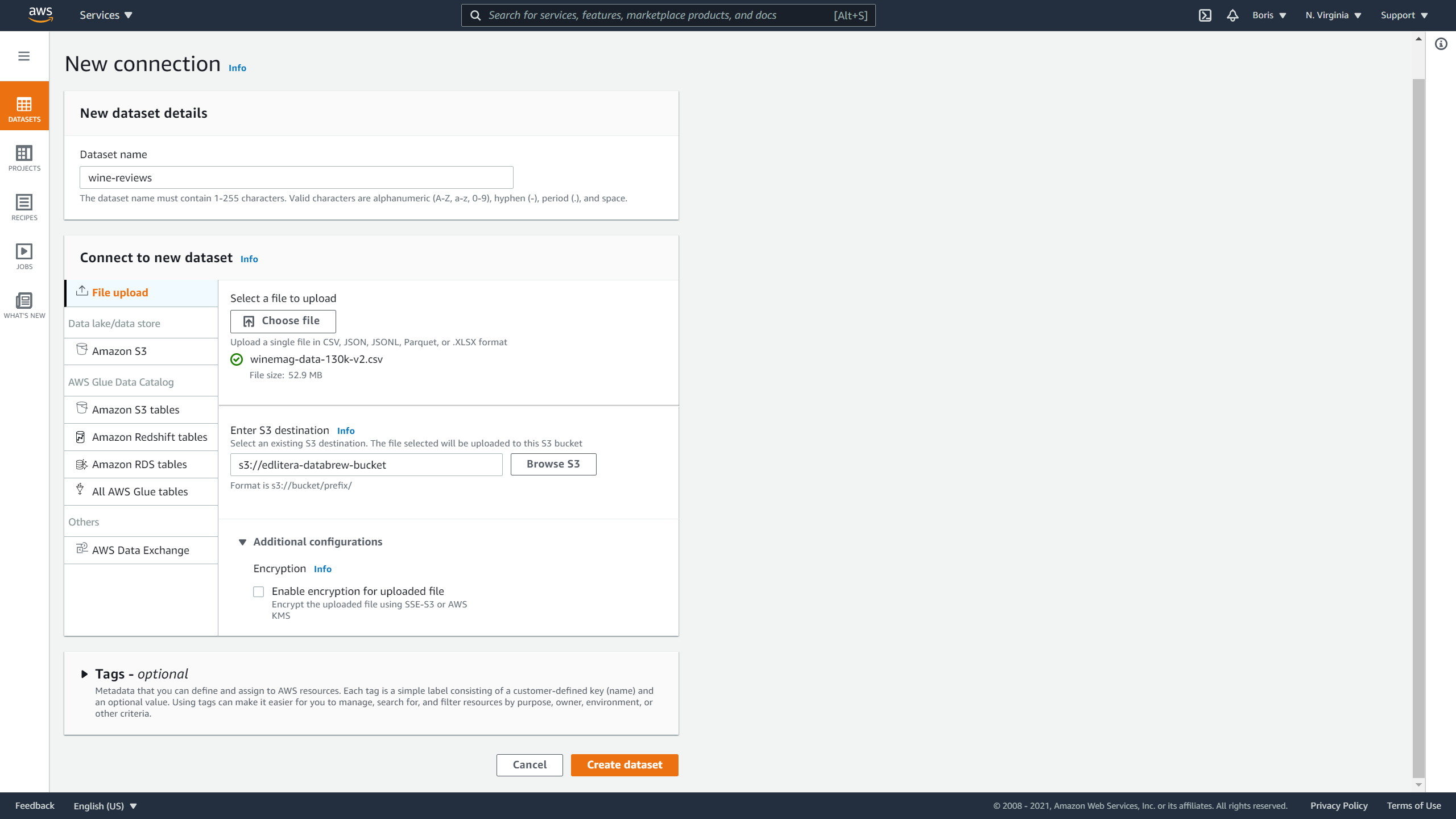

When connecting a new dataset, we need to define a few things:
- Dataset name
- Dataset source
- Output destination
- Tags (optional)
We are going to name our dataset "wine-reviews" and select "File upload". With file upload, we can select the dataset that we have on our local machine and tell DataBrew to upload it to the empty bucket we created earlier.

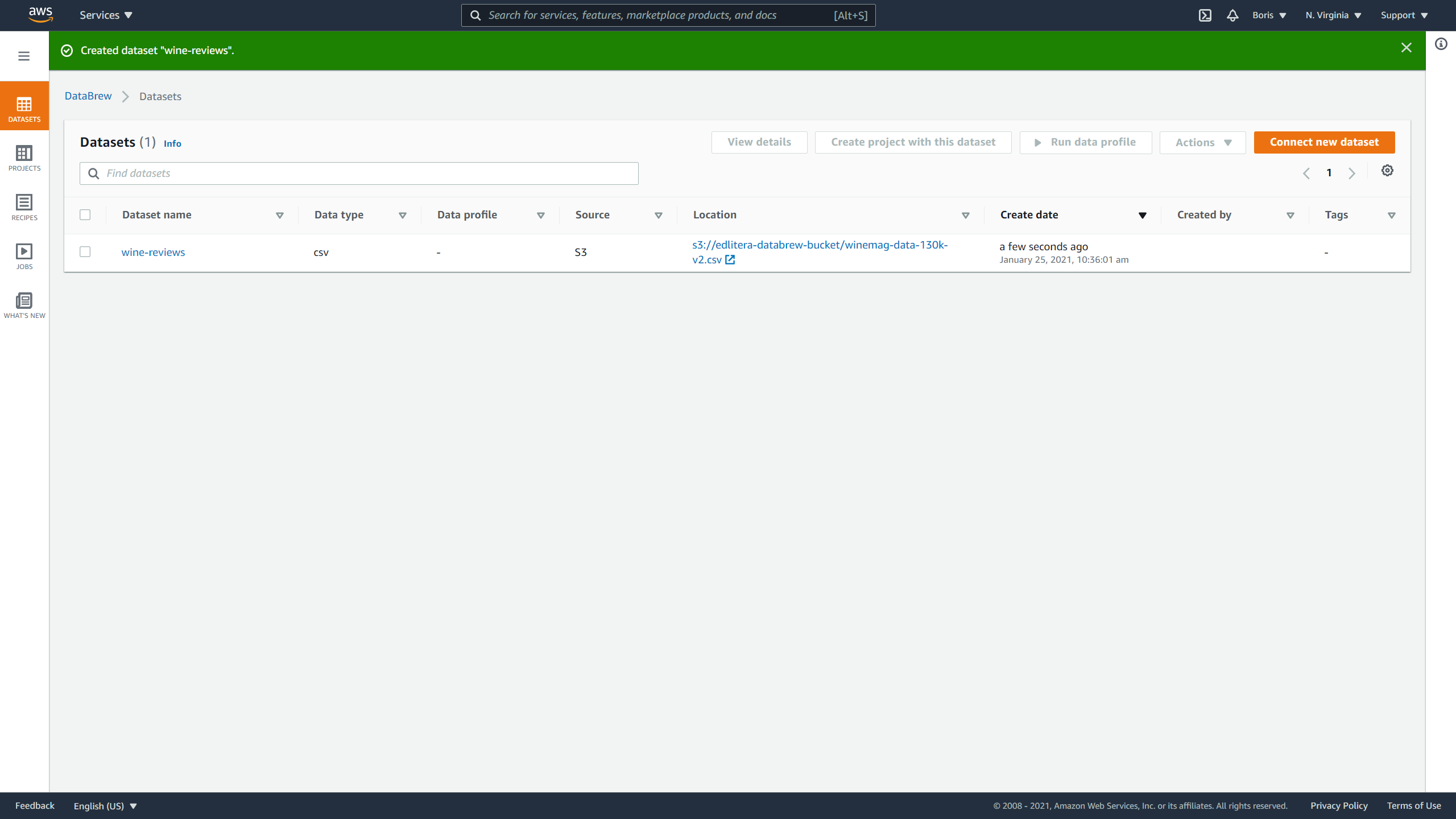

The new dataset should now be available for use.
Initial Data Analysis
After defining the dataset we are going to use, let's do some basic data analysis. DataBrew contains a dataset profiling feature. Profiling data can be very useful when the data we are working with is unfamiliar to us.

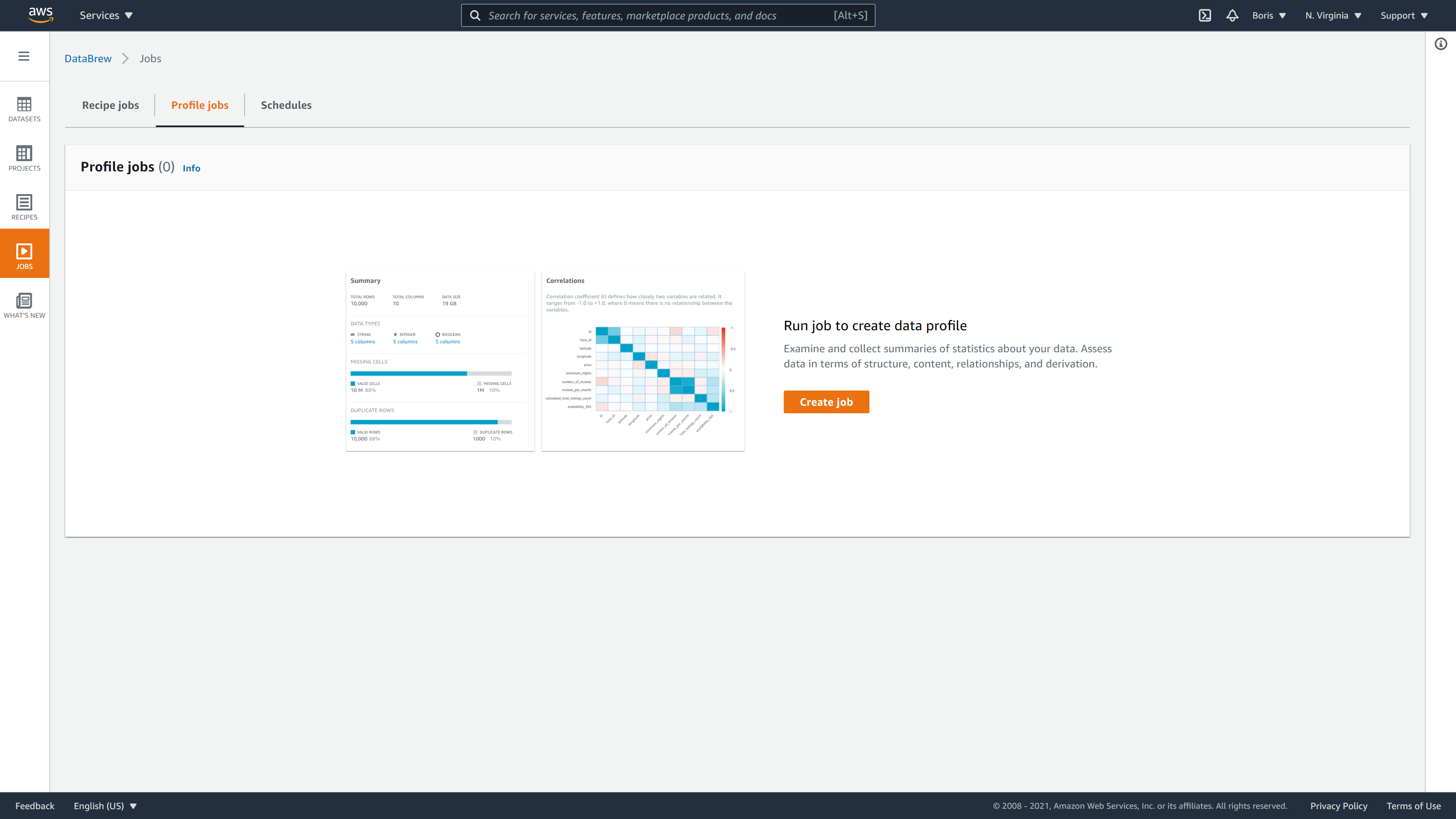

To create a profile job, we will click on the "Jobs" tab. We will be offered three options:
- Recipe jobs
- Profile jobs
At this moment, we want to create a profile of our dataset to gain some insight into how our data looks like. Let's select the "Profile jobs" tab and click on "Create job".

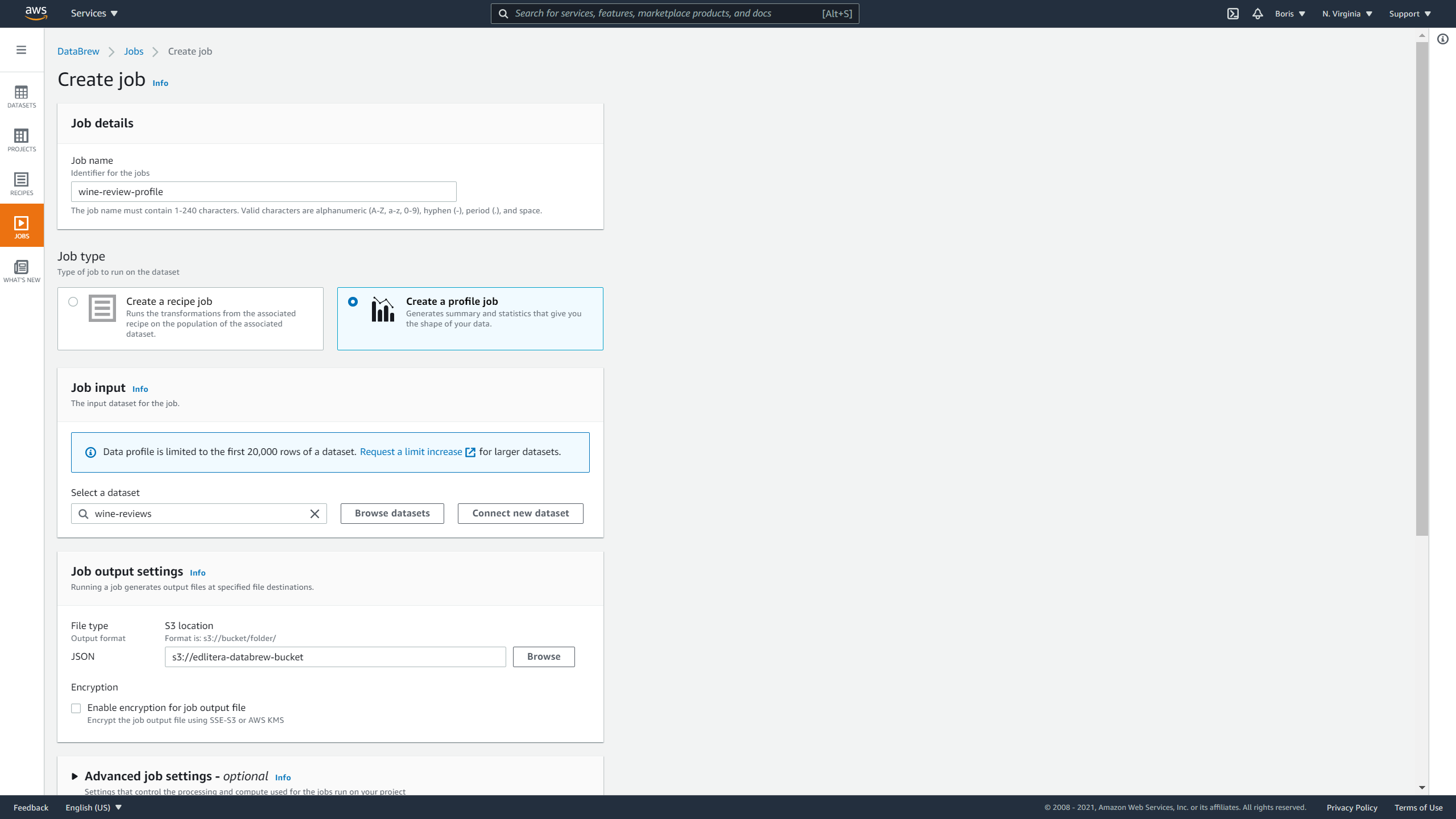

When defining the job, we will have to input values for the following parameters:
- Job name
- Job type
- Job input
- Job output settings
- Optional settings
We will call our job "wine-review-profile". We will select that we want to create a profile job and will select our dataset. For output, we will select the bucket we created earlier.
To finish, we need to define a role. Since we don't already have a role that we can select, we will create a new role and name it "edlitera-profiling-job".
After defining everything, we just need to click on "Create and run job" and DataBrew will start profiling our dataset.
Once the job is finished, we can click on "View profile" which is situated in the upper right corner. A dataset profile contains the next sections:
- Dataset preview
- Data profile overview
- Column statistics
- Data lineage
The "Dataset preview" section displays the dataset alongside information such as dataset name, data size, where our data is stored, etc.

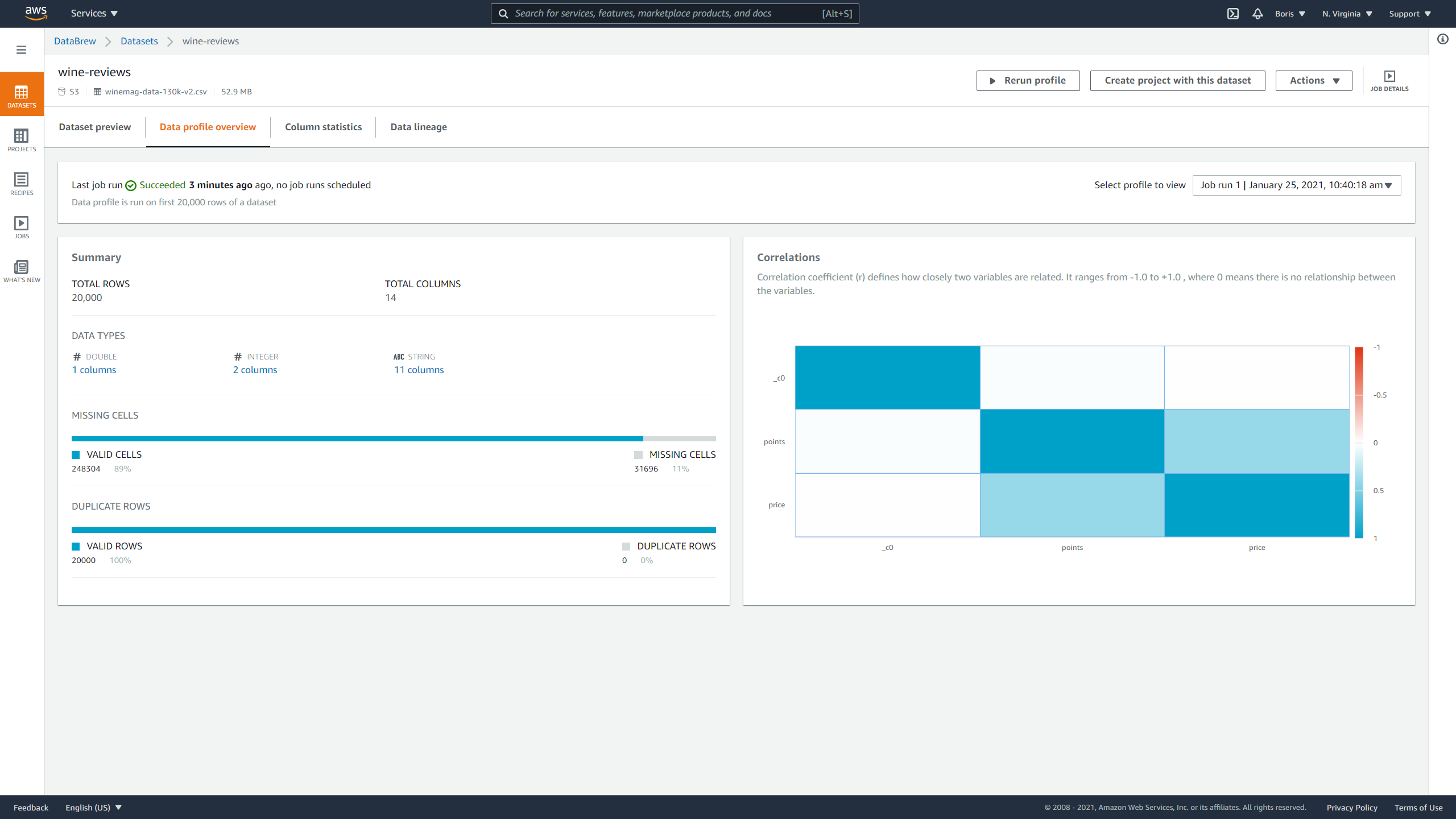

"Data profile" displays information about:
- Number of rows
- Number of columns
- Data types of columns
- Missing data
- Duplicate data
- Correlation matrix
Our dataset doesn't contain duplicates, but it is missing some data. Since the correlation matrix shows only three values and we have fourteen columns in total, we can conclude that we have a lot of columns with categorical data, which is also confirmed by the data types section.

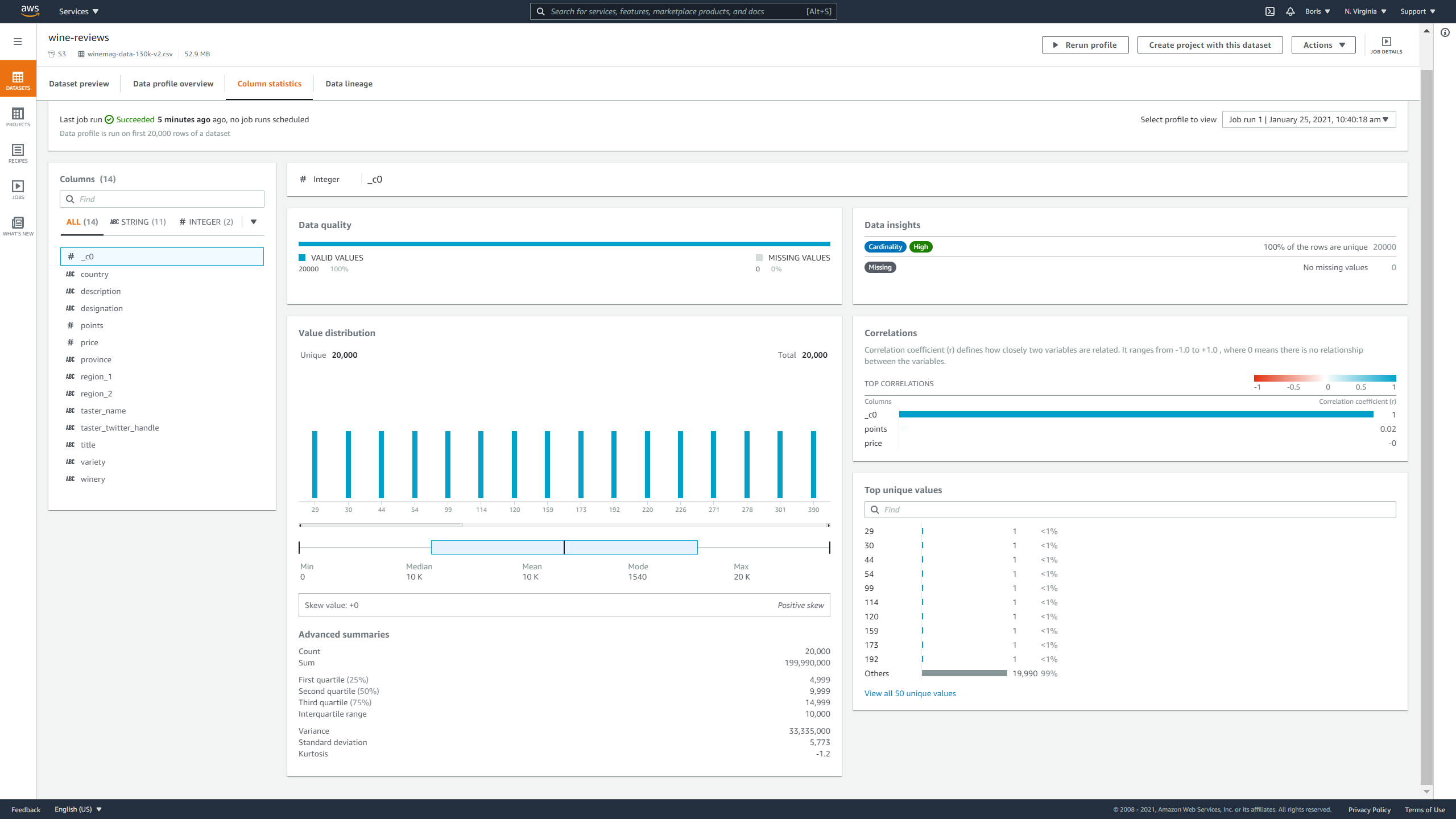

Clicking on “column statistics” displays the following information:
- Column data type
- Percentage of missing data in column
- Value distribution graph
- Skewness factor
- Top ten most frequent unique values
- The correlation coefficient between columns

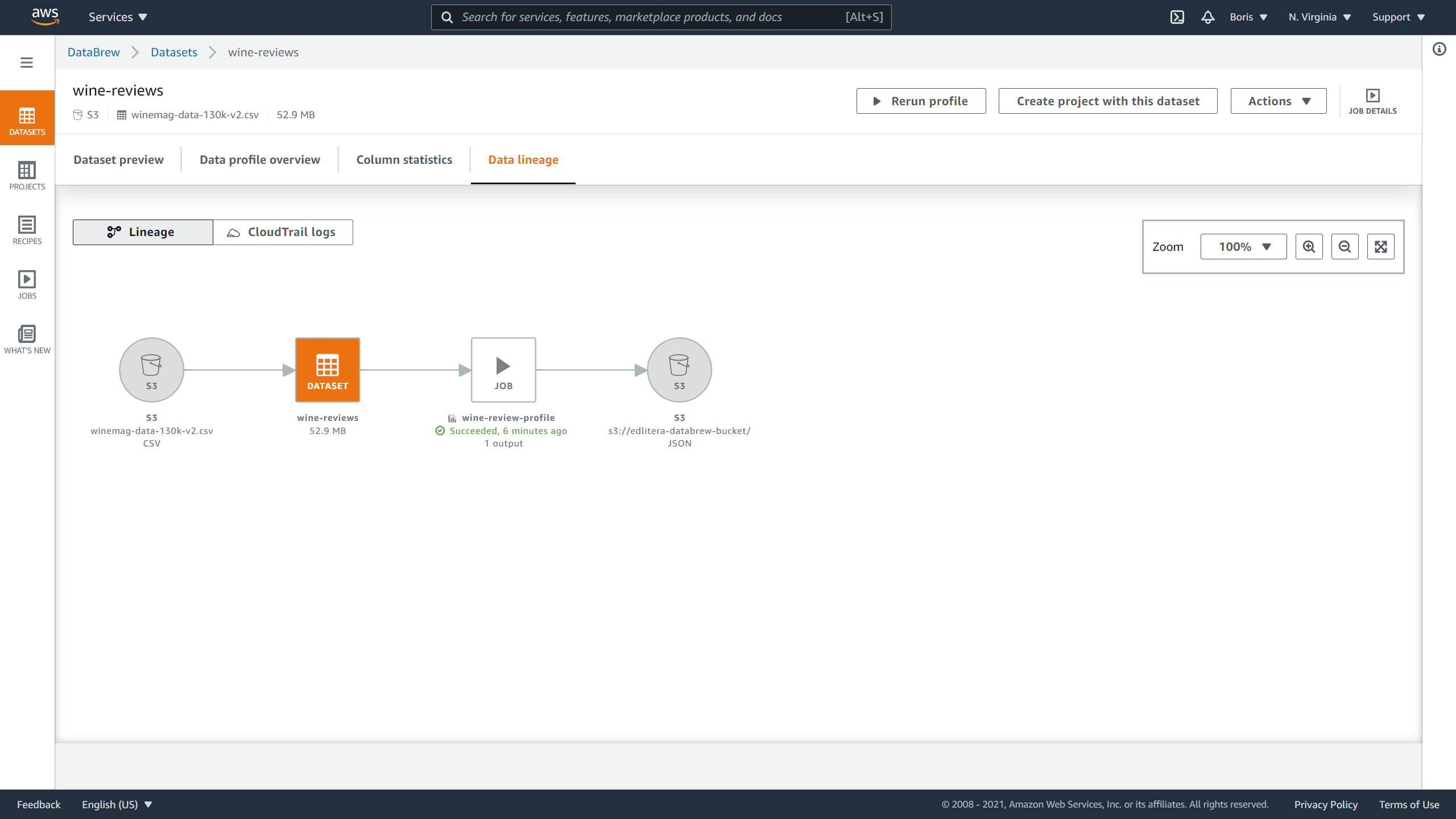

Finally, opening the "Data lineage" tab gives us a visual representation of the lineage of our data.
As mentioned before, this is probably the most important functionality of DataBrew. Transforming a dataset follows a transformation recipe, a sequence of transformations defined in a format that can be easily reused. To demonstrate some of the functionalities that DataBrew offers, we are going to create a DataBrew project and define a DataBrew transformation recipe.

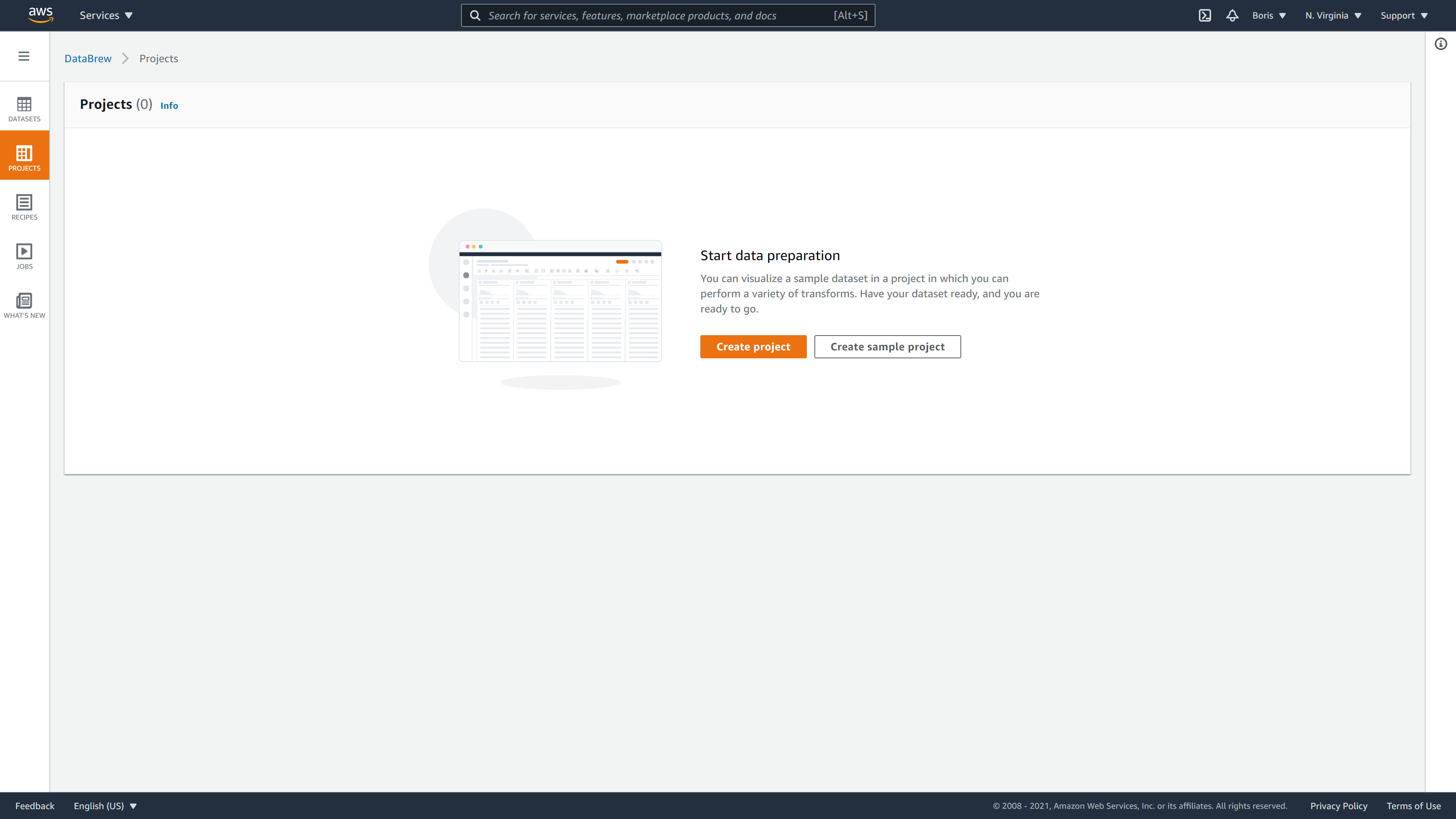

To do that, we need to click on "Create project" inside the "Projects" tab.

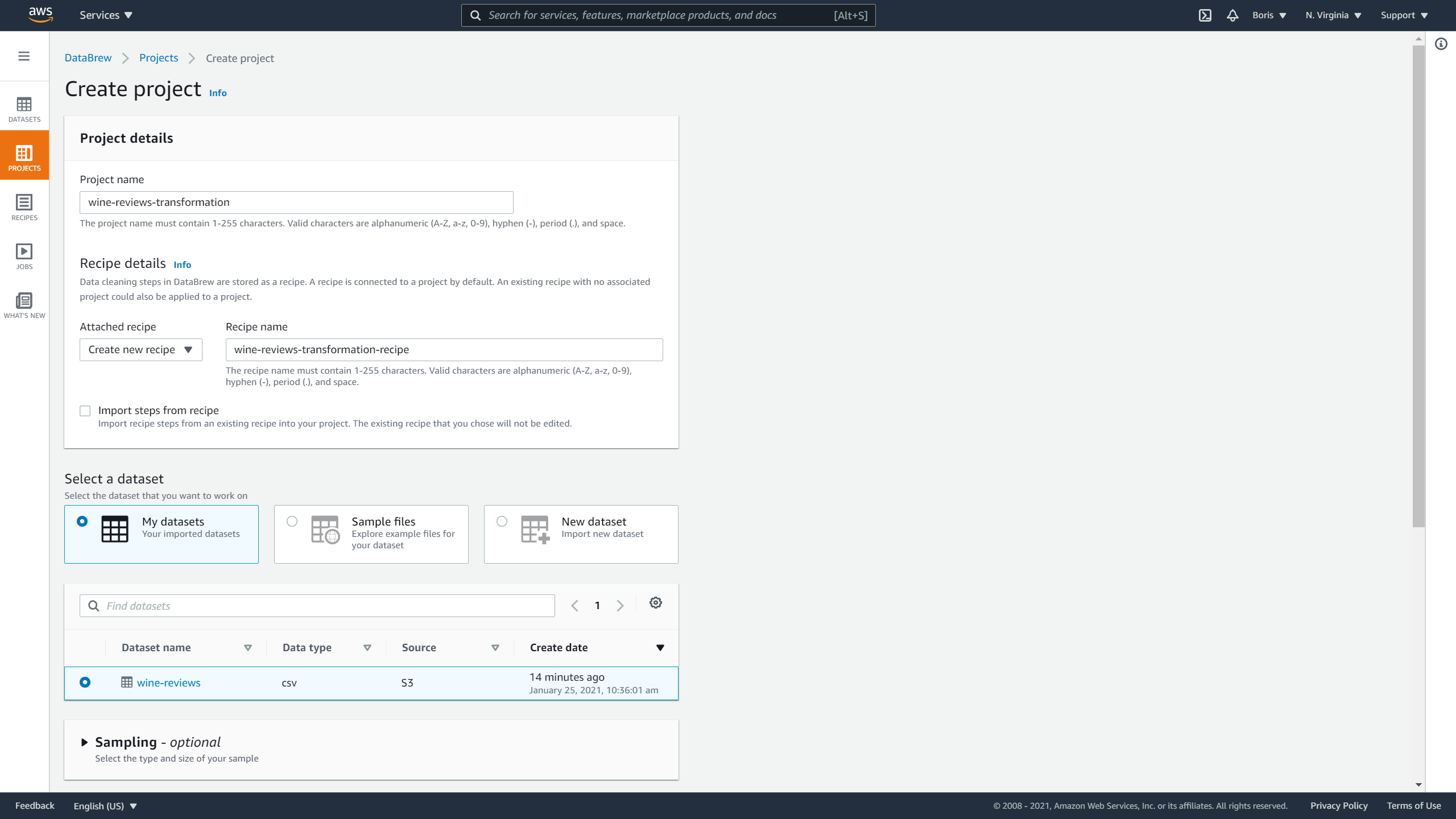

To create a project, we need to define values for the following variables:
- Project name
- Recipe name
- Sampling and tags (optional)
We are going to name our project "wine-reviews-transformation", and our new recipe " wine-reviews-transformation-recipe". Afterward, we are going to select that we want to work with our "wine-reviews" dataset.
For "Sampling", we will leave the value at default, which means we will take a look at a sample of 500 rows, which is enough to demonstrate how recipes are made. To finish defining the process, we are going to select the same role that we used earlier: the "AWSGlueDataBrewServiceRole-wine-reviews" role.

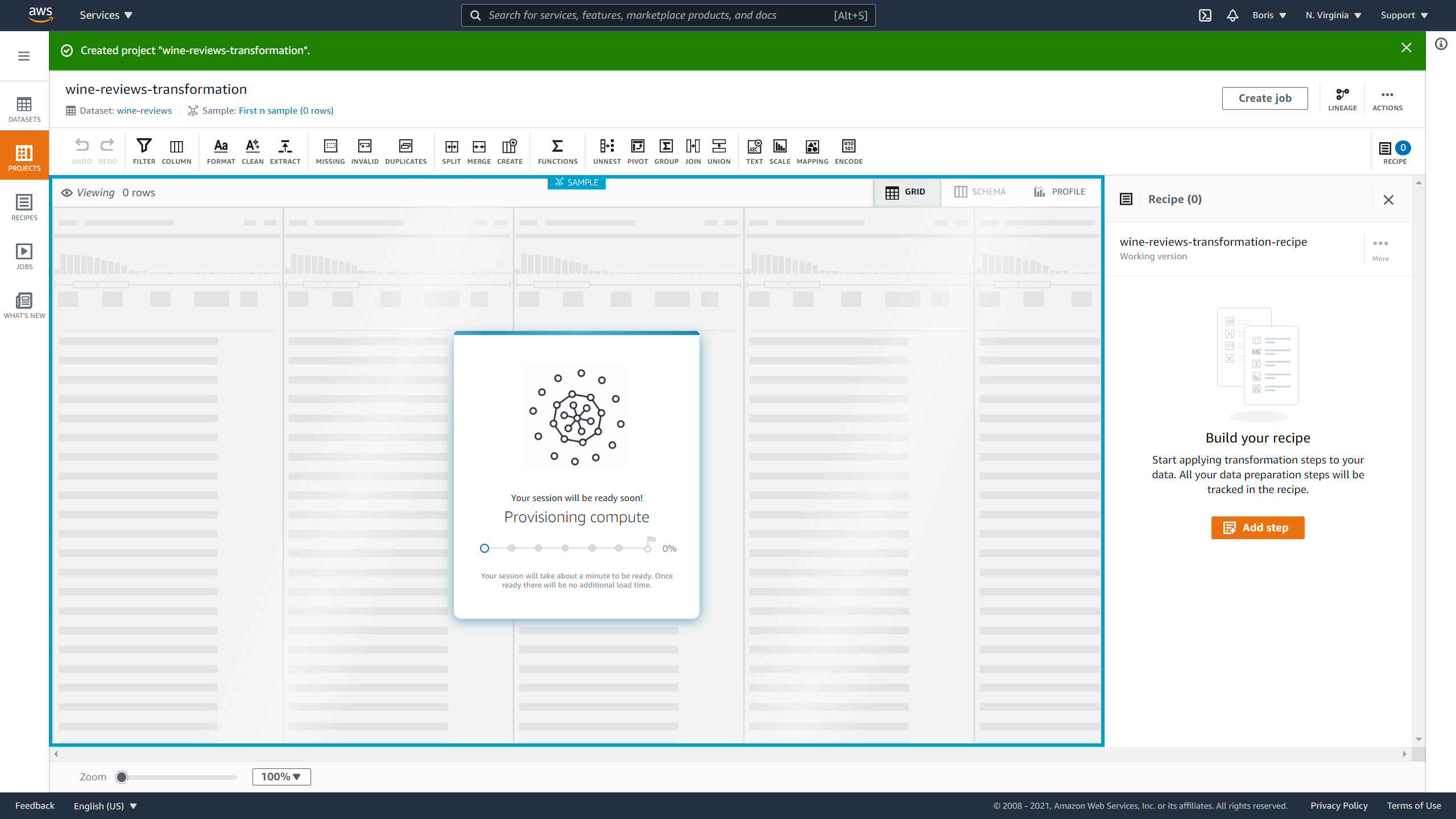

DataBrew will then start preparing a session, which takes a little bit of time.

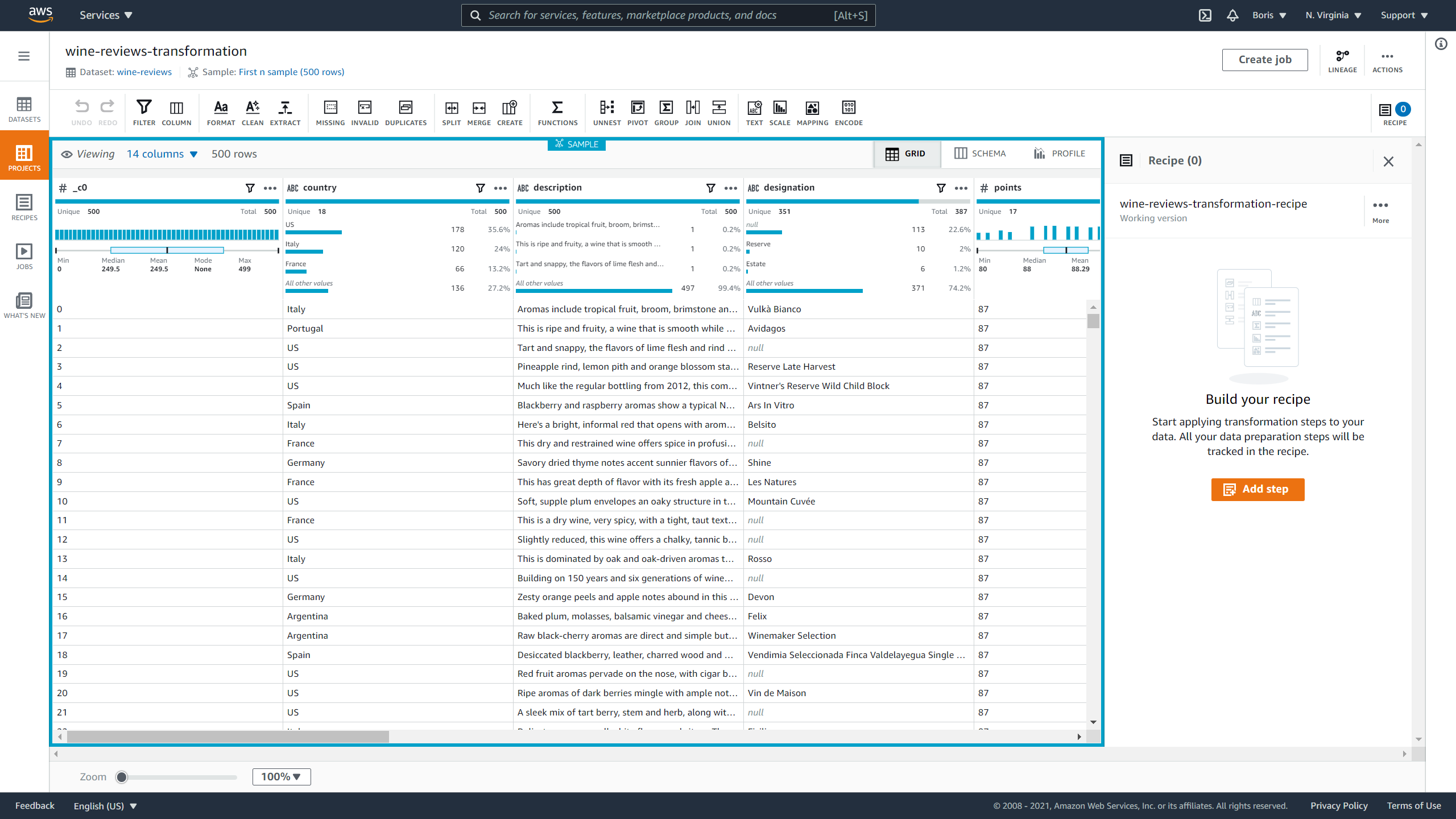

We can display our dataset as a grid or a schema. For this demonstration, we will display it as a grid.
Now it is time to start building our recipe. When we click on "Add step" we can select a transformation that we want to apply to our dataset. The different transformations we can perform are visible in the toolbar above our dataset. They serve many different purposes.

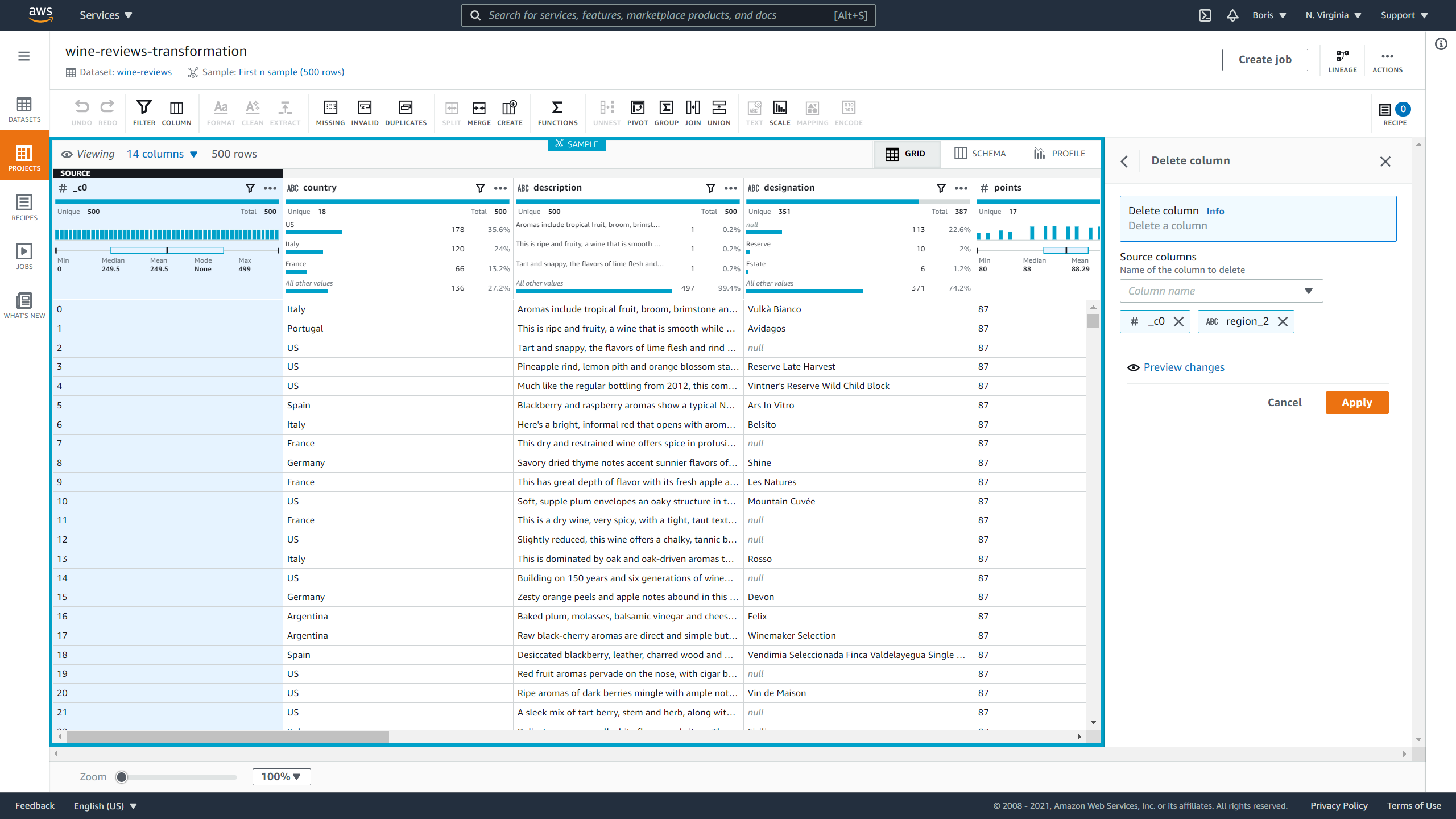

Let's start transforming our data. First, we will remove the "_c0" column because it is a copy of the index. Next, we can see if there are any columns we can immediately discard based on how much data they are missing. If we go back to the profile and look at each column independently, we can notice that the "region_2" column is missing over 60% of its total data. We will remove it because it is missing too much data.
To remove columns, we click on "Column actions" and then on "Delete". To finish the process, we just select the columns we want to remove and click on "Apply".

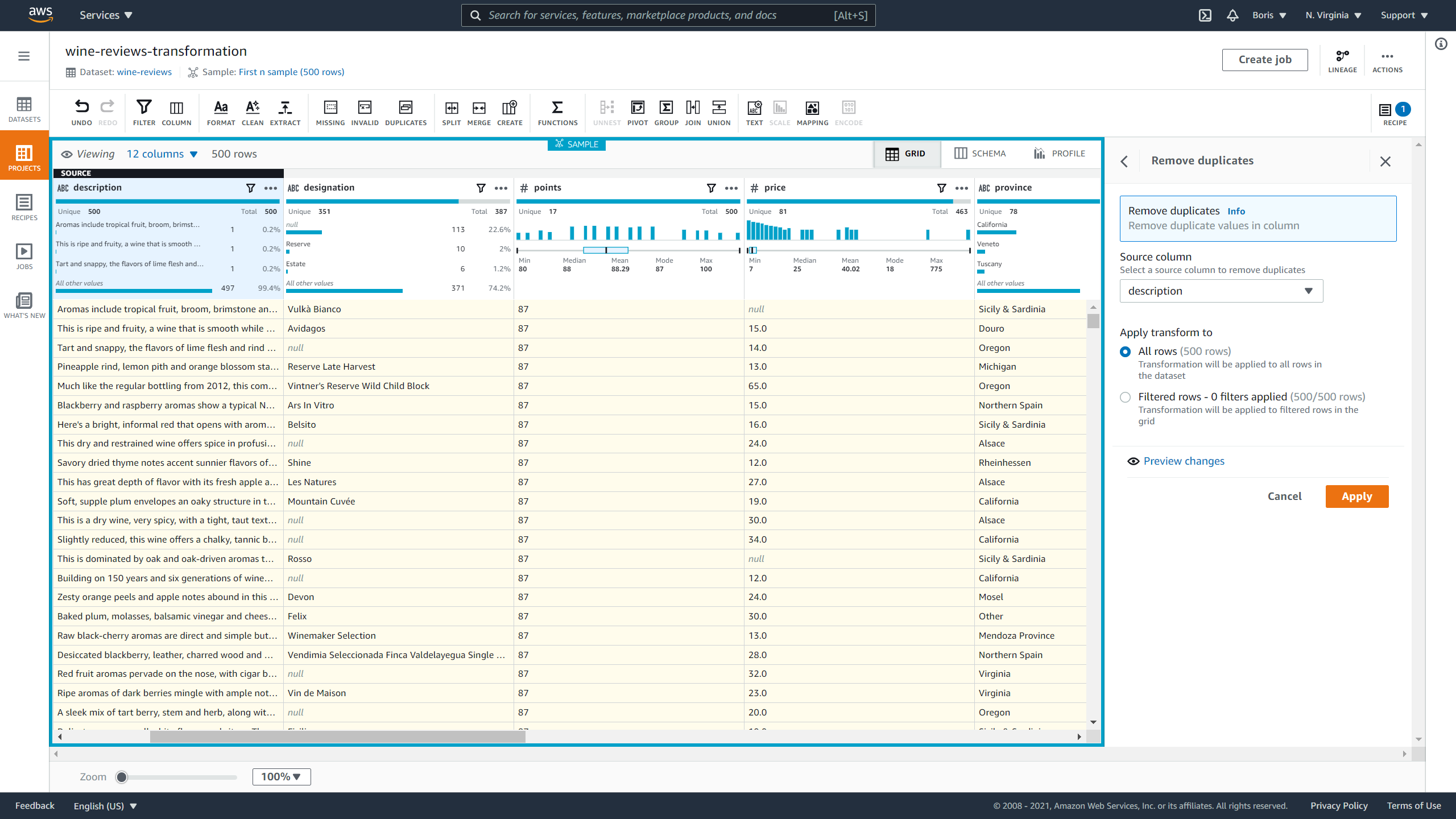

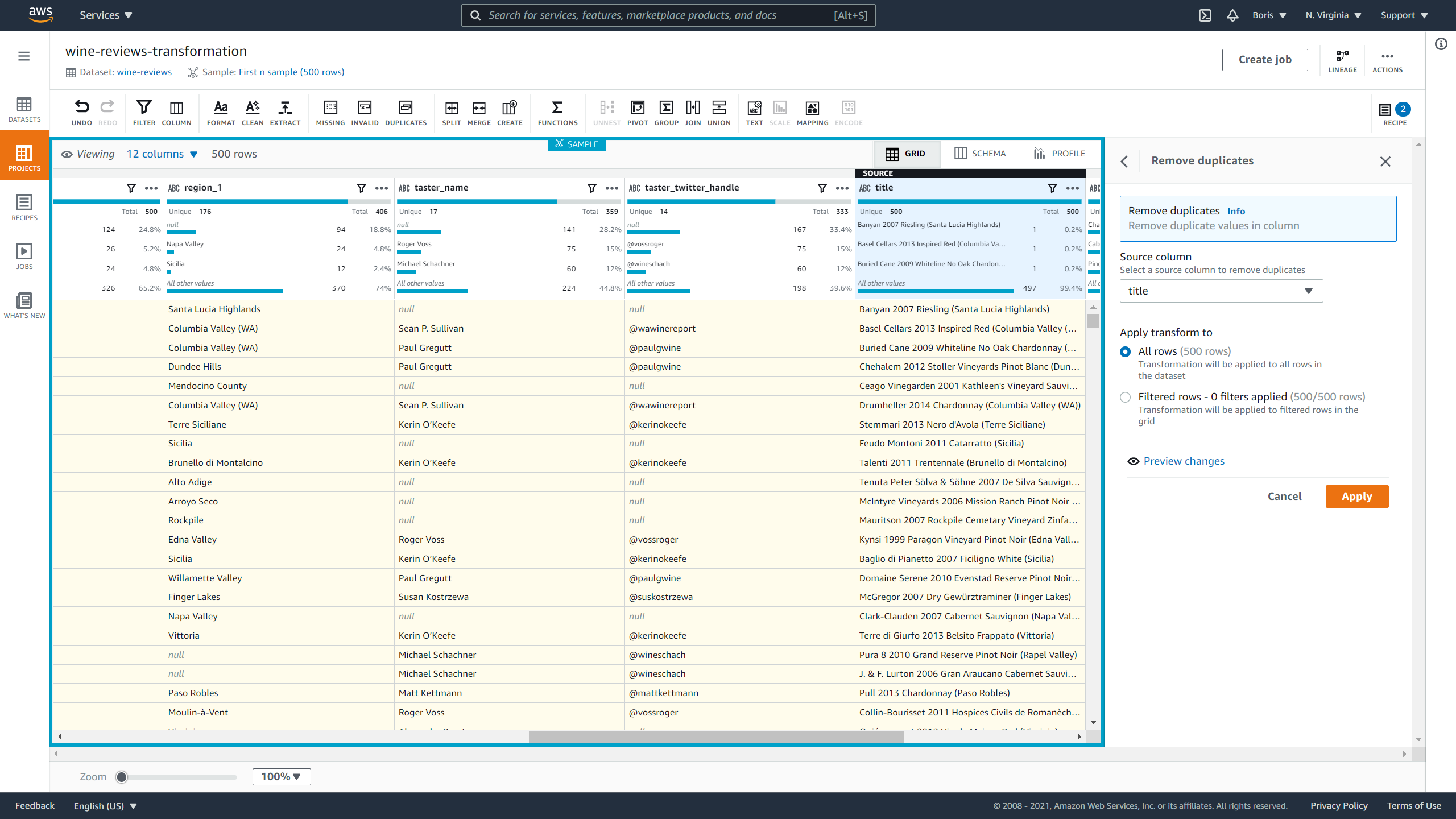

Now let's deal with duplicate values. Our current dataset doesn't have duplicates, but since we want to make this recipe reusable, we are going to include this step. We are going to look for duplicate rows in the "description" and "title" columns. Wines can be from the same country or cost the same, but no two wines can have the same name or have the same description. To deal with duplicates, we need to click on "Duplicate values" and then click on "Remove duplicate values in columns". Then we just select the column that can potentially have duplicates and click on "Apply".
Our next step will be getting rid of missing values. We will fill in missing values with the average value if the column is a numerical one, or with the most frequent value if it is a categorical one

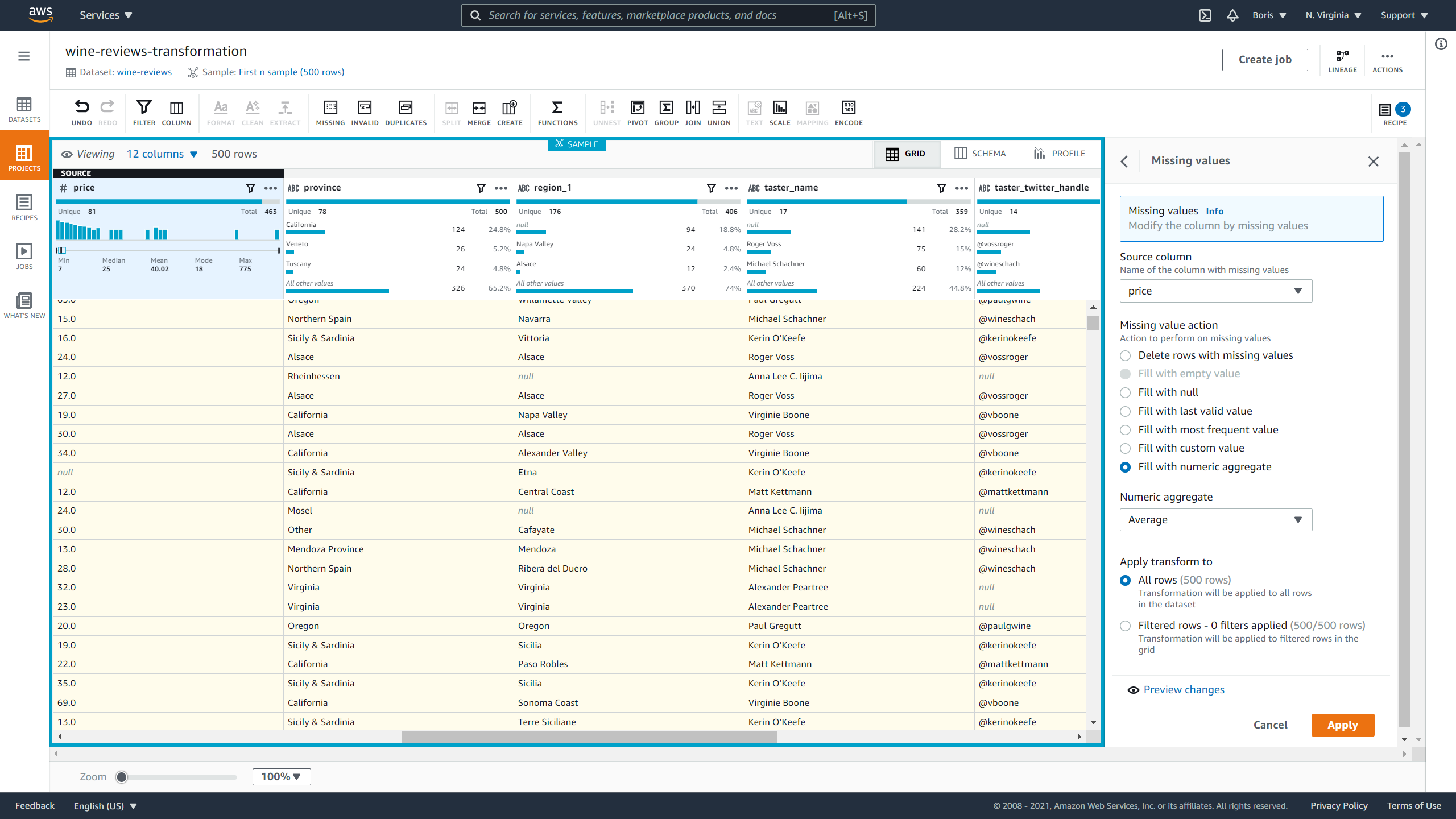

Let's start with the "price" column. That column is a numerical one. To impute missing values, we will click on "Missing values" and then on "Fill or impute missing values". Then we will select "Numeric aggregate", select "Average" and click on "Apply".
To impute a categorical column, click on "Missing values" and then on "Fill or impute missing values", followed by "Fill with most frequent value". Apply this procedure to the "Designation", "region_1", "taster_name" and "taster_twitter_handle".
To finish, let's demonstrate how to encode categorical data. To avoid making this article too long, we won't deal with all columns and will instead demonstrate how to one-hot encode the "taster_name" and "taster_twitter_handle" columns. The number of unique values inside other columns is too big for one-hot encoding. To one-hot encode data, we need to click on "Encode" and then on "One-hot encode column". We will select "taster_name" and click on "Apply".

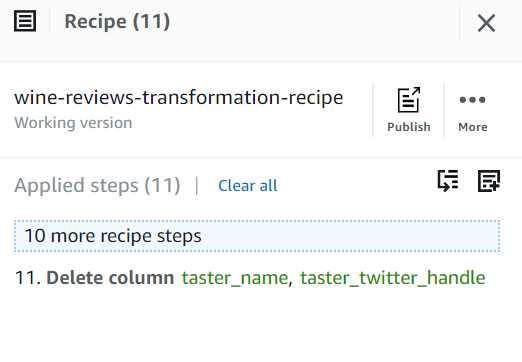

However, DataBrew won't automatically remove the original column. We need to do that manually in a way similar to how we discarded "_c0" and "region_2". To one-hot encode "taster_twitter_handle" we just repeat the procedure. Once these tasks have been finished, we will remove the original "taster_name" and "taster_twitter_handle" columns.
After we have finished our transformation recipe, we can publish it by clicking on "Publish".

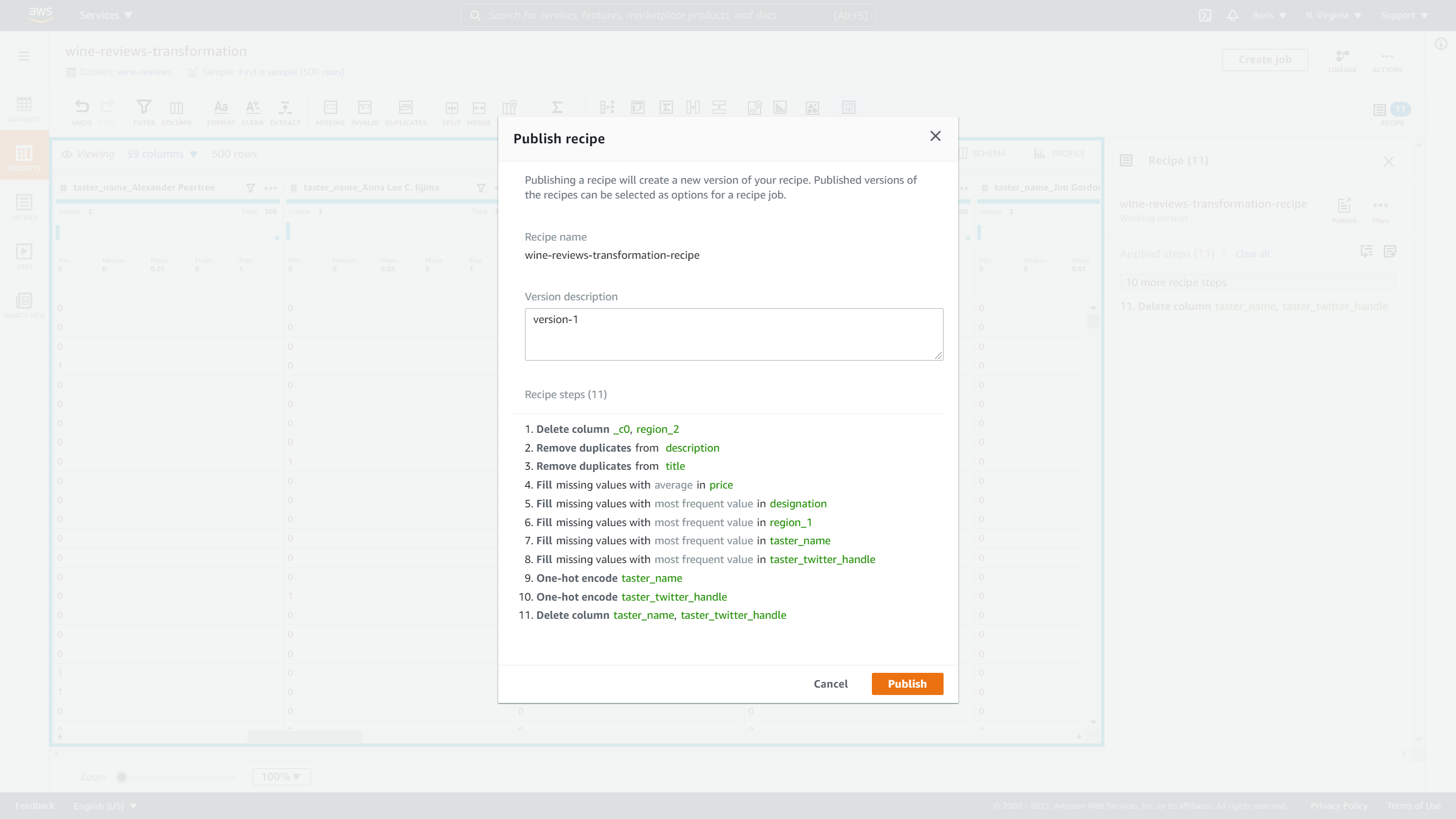

When publishing the recipe, under "Version description" we will put "version-1" and click on "Publish".
If we click on the "Recipes" tab now, we are going to see that the recipe has been successfully published.
It will also allow us to do the following actions with that recipe:
- Download it as a YAML
- Download it as JSON
- Create a job using this recipe
- Upload recipe
Even before DataBrew was introduced, AWS Glue was very popular. AWS is currently the most popular cloud platform, so this shouldn't come as a surprise. Even though it doesn't integrate that well with tools that are not part of AWS, most Glue users already used other AWS services so that was never a problem. The inclusion of DataBrew will most likely make Glue even more popular. With its simplicity and zero code interface, it is the perfect tool for creating an environment where a multitude of different teams from different technical backgrounds can collaborate.
However, its simplicity can also be considered its biggest flaw. Some users simply need more freedom and flexibility than DataBrew offers. Very advanced users that heavily invest in complex machine learning and deep learning methods will probably feel somewhat limited. Even if it has over 250 built-in transformations, sometimes a data scientist needs to modify a particular transformation to specifically target an issue with a model. This kind of precision is unfortunately not available without some coding, and as such is impossible to implement in a tool like DataBrew.
All in all, Glue is an excellent service even without DataBrew. DataBrew is just an addition that is aimed at a particular audience: users with little to no coding knowledge. For most people, DataBrew will be enough because it offers a lot of built-in functionality. The fact that more advanced users might decide to use a tool such as SageMaker DataWrangler doesn't invalidate it as a tool. DataBrew's limitations are not incidental and show how well its creators knew exactly what their target audience wants from such a tool. Therefore, it is important to keep in mind that DataBrew wasn't designed for everyone, but was designed to provide a lot of functionality to its intended users.
